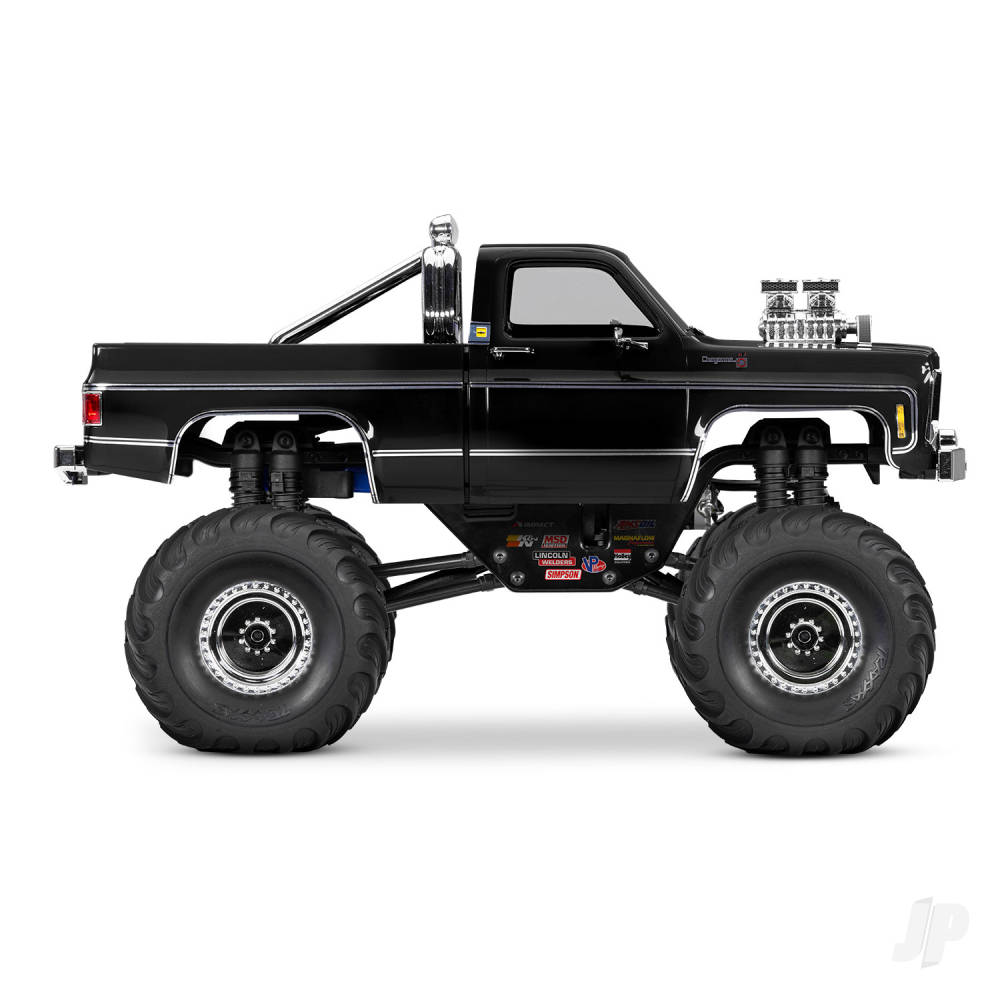

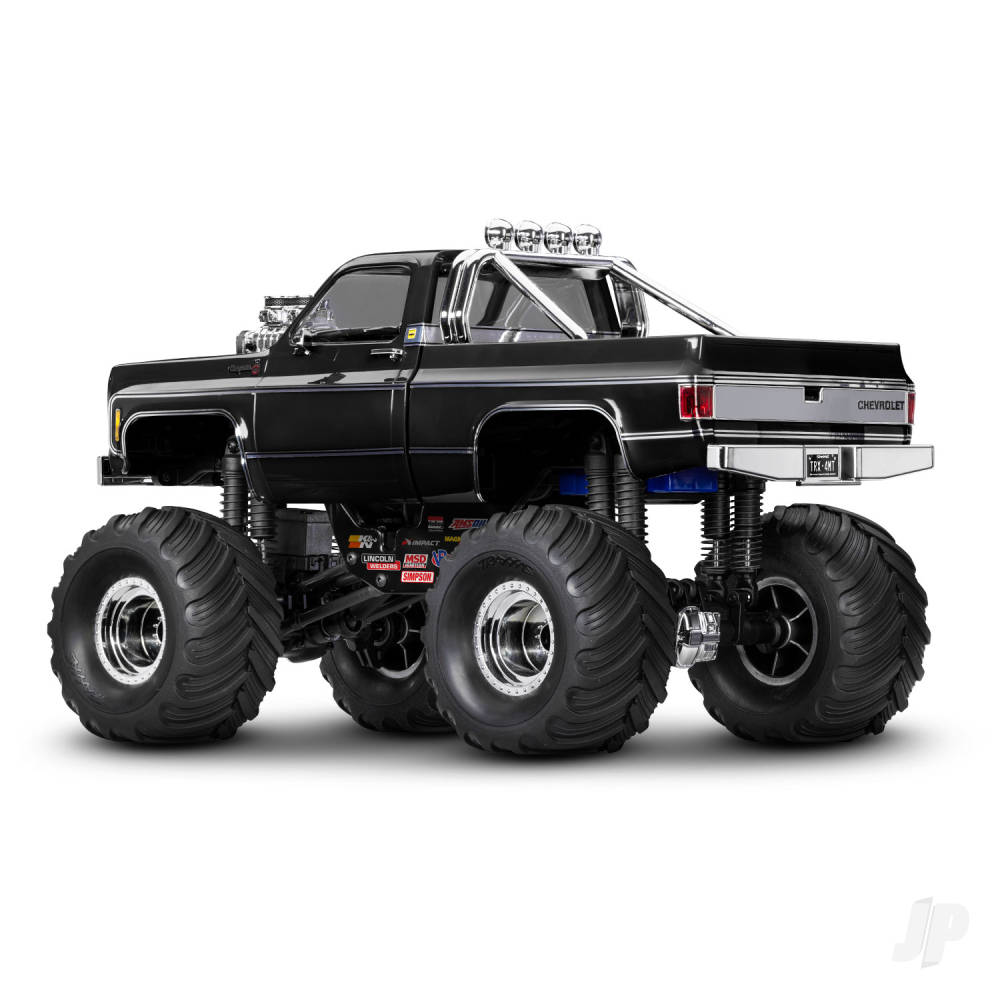

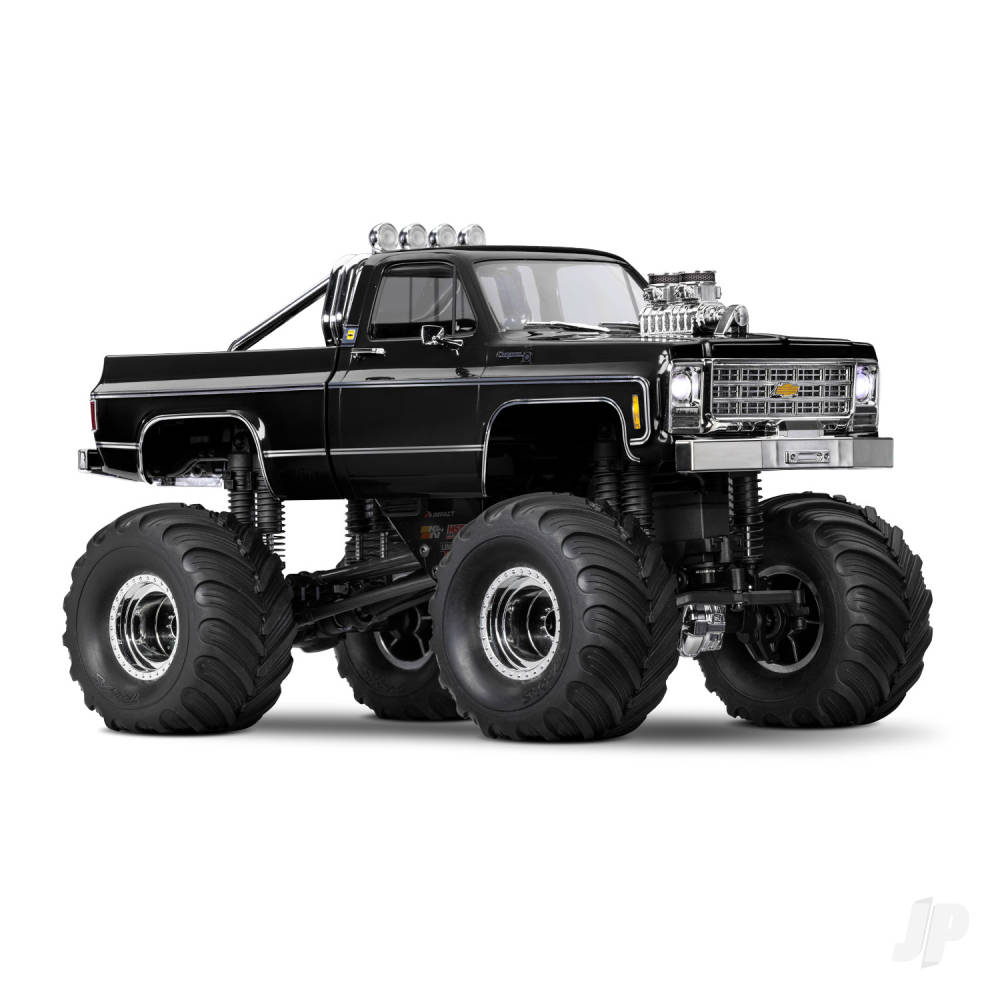

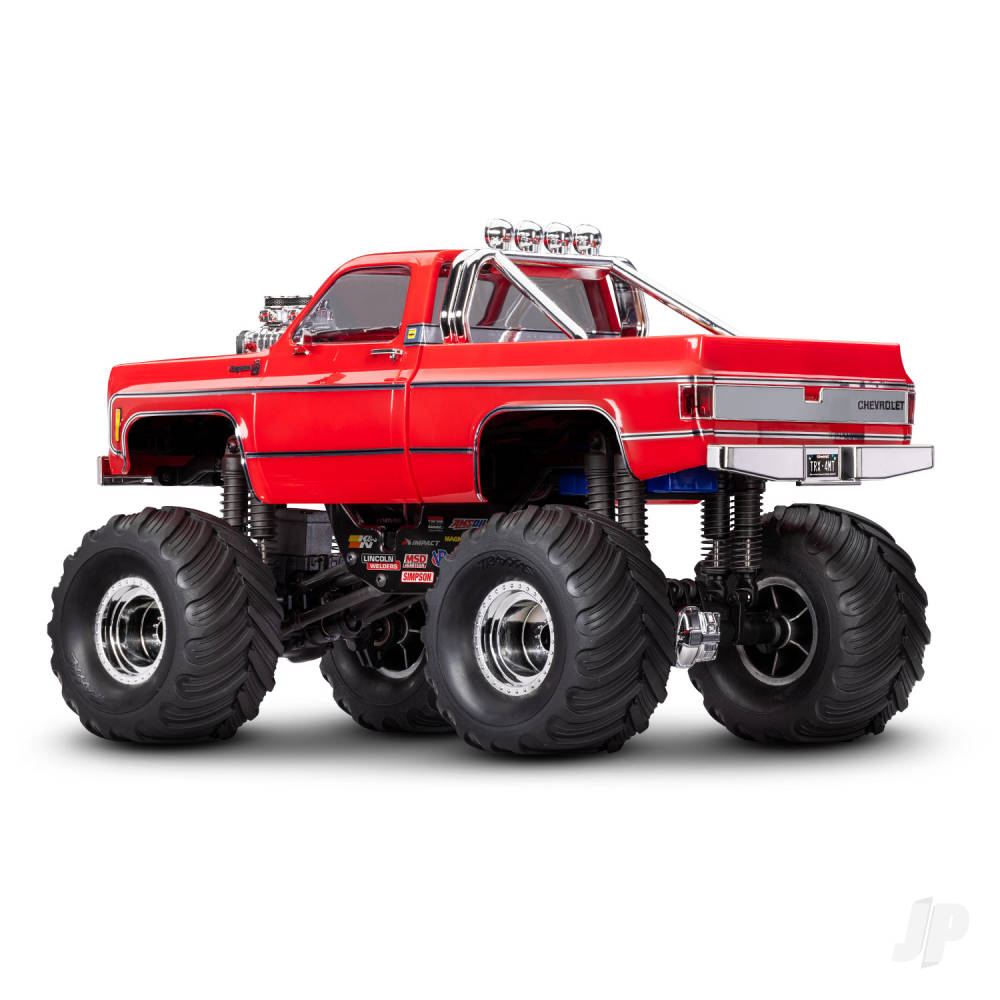

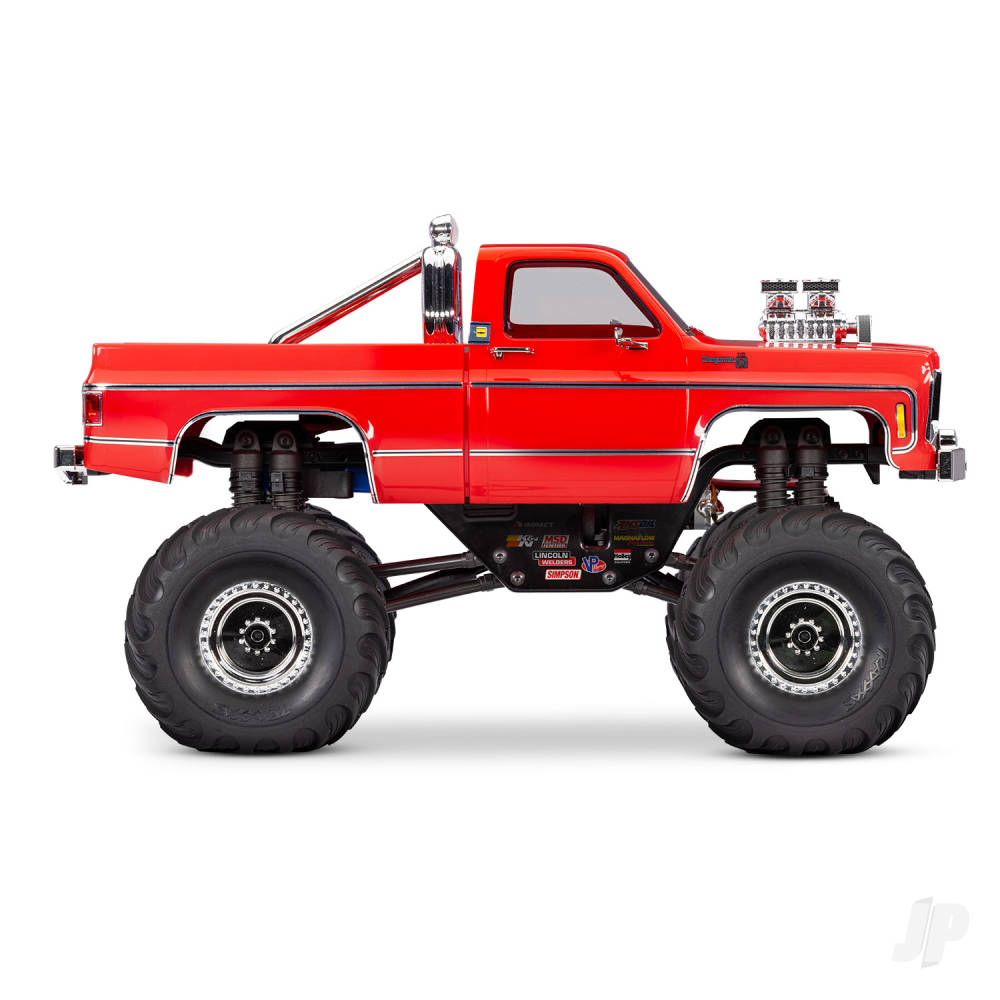

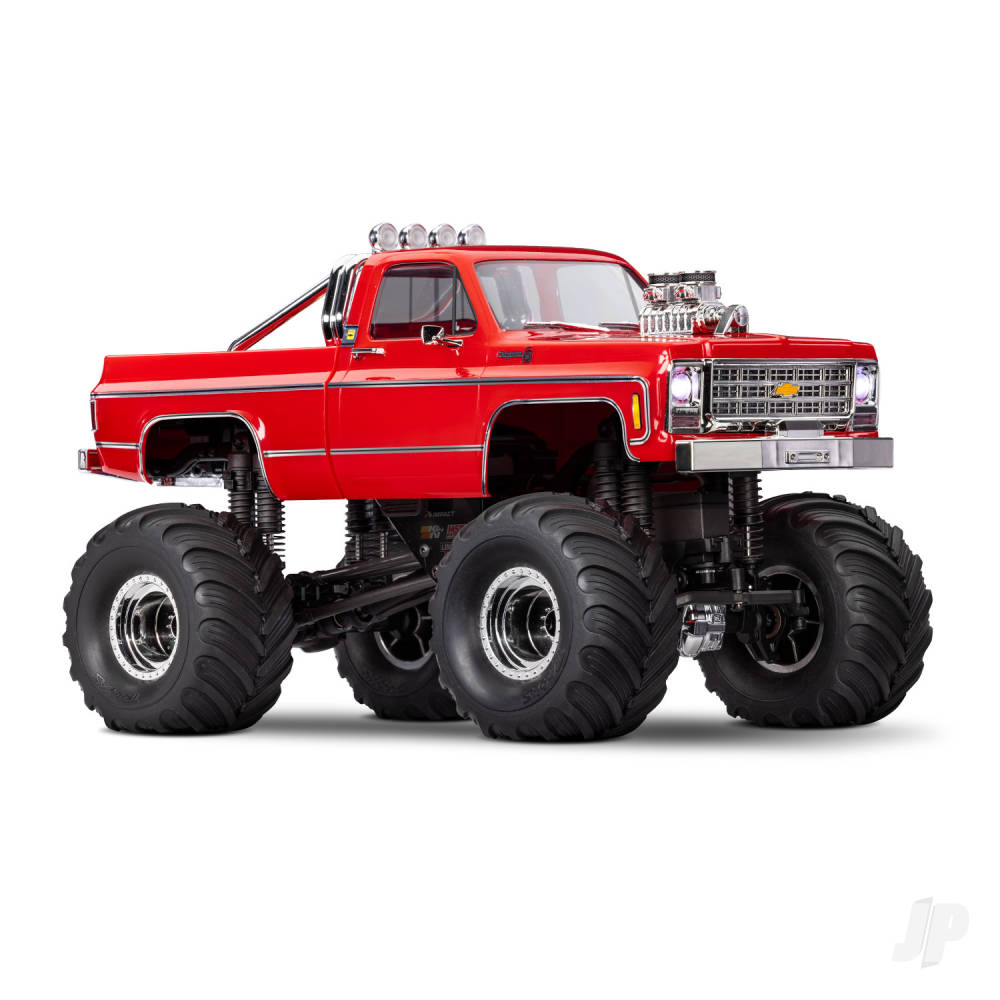

1/18 TRX-4MT Chevrolet K10 Monster Truck

Traxxas delivers solid-axle monster truck performance and durability to 1/18 scale fans with the new TRX-4MT™. A factory-installed Long Arm Lift Kit with eight shocks and large Terra Groove tires give TRX-4MT unrivaled capabilities and towering ground clearance. Available with highly detailed Ford® F-150® or Chevrolet® K10 bodies, TRX-4MT sets the standard for authentic monster truck performance in a convenient, take-anywhere size.

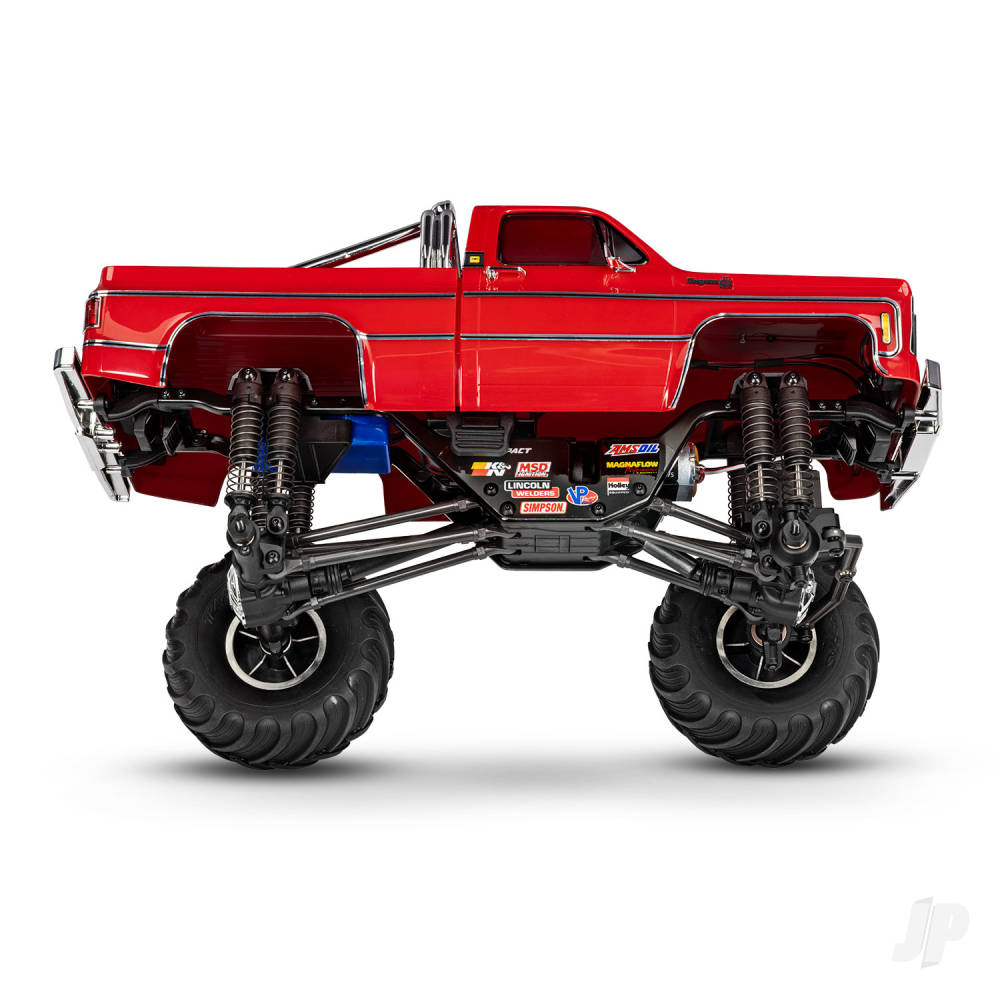

LIFTED PERFORMANCE

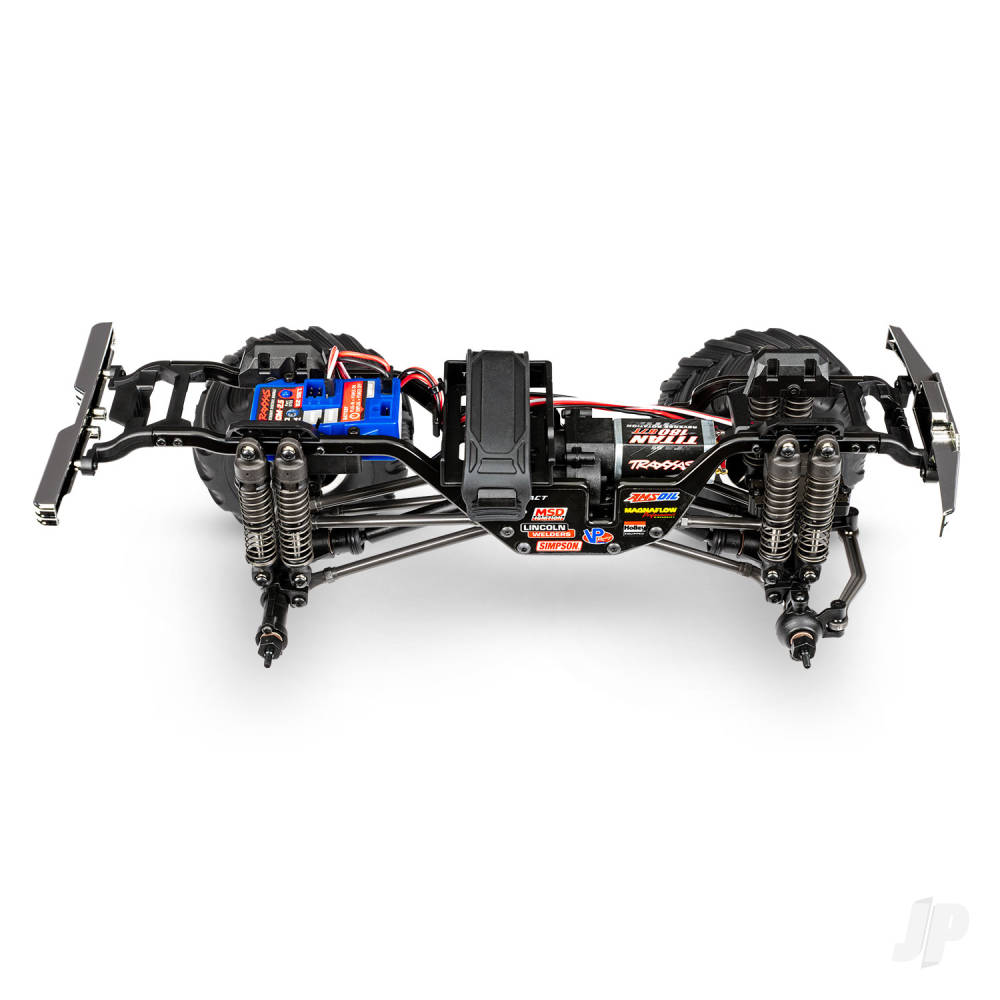

TRX-4MT’s factory Installed Long Arm Lift Kit and large Terra Groove tires raise the center ground clearance 88% for an authentic monster truck stance. Eight individual shocks on revised shock mounts with extended links ensure the truck maintains its carefully tuned suspension geometry for peak performance.

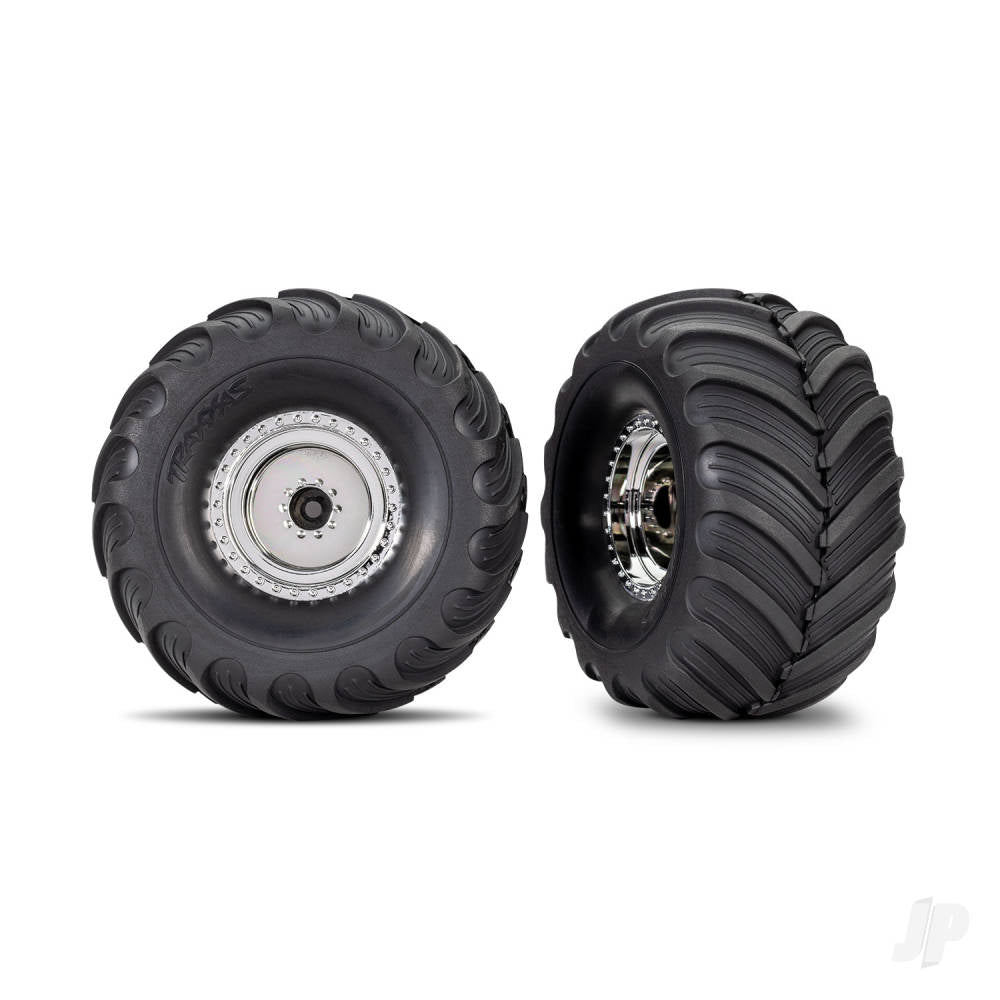

TERRA GROOVE TIRES
Huge Terra Groove tires give TRX-4MT the authentic “hand carved” look of full-size monster trucks. Mounted on chrome deep-dish wheels with beadlock trim, Terra Groove tires provide excellent traction with an aggressive tread pattern that bites into loose surfaces. The sticky rubber compound is also great on carpet, grass, and pavement.

METAL GEAR SERVO
TRX-4MT comes factory-equipped with the upgraded 2065R servo to turn its oversize Terra Groove monster truck tires with authority. This fully waterproof servo features an all-metal-gear drivetrain for maximum durability under the toughest conditions.

Vehicle Specs:

• Length: 10.6 inches (276 mm)
• Front Track: 6.5 inches (166 mm)
• Rear Track: 6.5 inches (166 mm)
• Center Ground Clearance: 2.16 inches (55 mm)
• Weight (with battery): 1.27 pounds (577 g)
• Height: 6.7 inches (170 mm)
• Wheelbase: 6.45 inches (164 mm)
• Approach Angle: 82°
• Breakover Angle: 38°
• Departure Angle: 67°
• Shock Length (front and rear): 2.0 inches (51 mm)
• Hex Size: 7 mm
• Differential Type: Fully locked; 2:1 axle ratio
• Wheels (front and rear): 1.33″ x 0.49″ inches (34 x 13 mm)
• Tires (front and rear): 3.14″ x 1.65″ inches (80 x 42 mm)

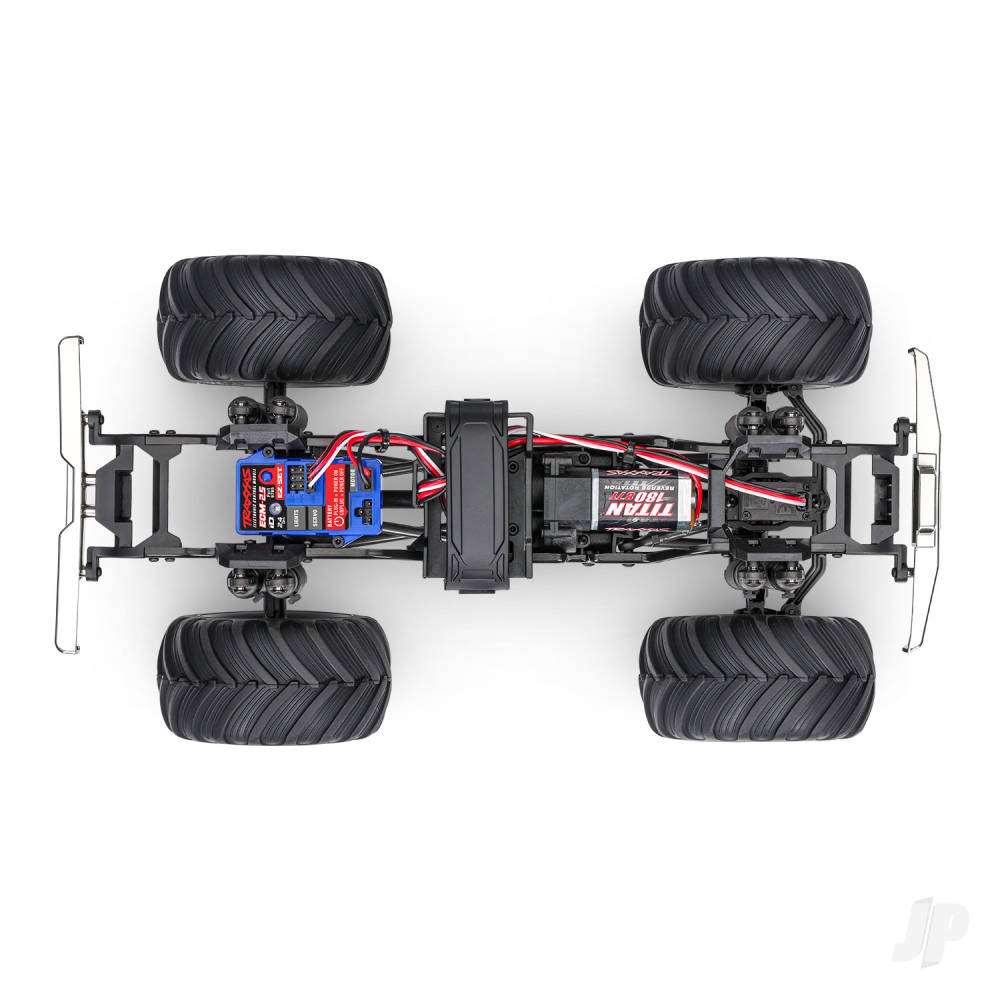

• Electronic Control Module: ECM-2.5™
• (combo ESC, receiver, lighting control*)
• Motor (electric): Titan® 180 87T

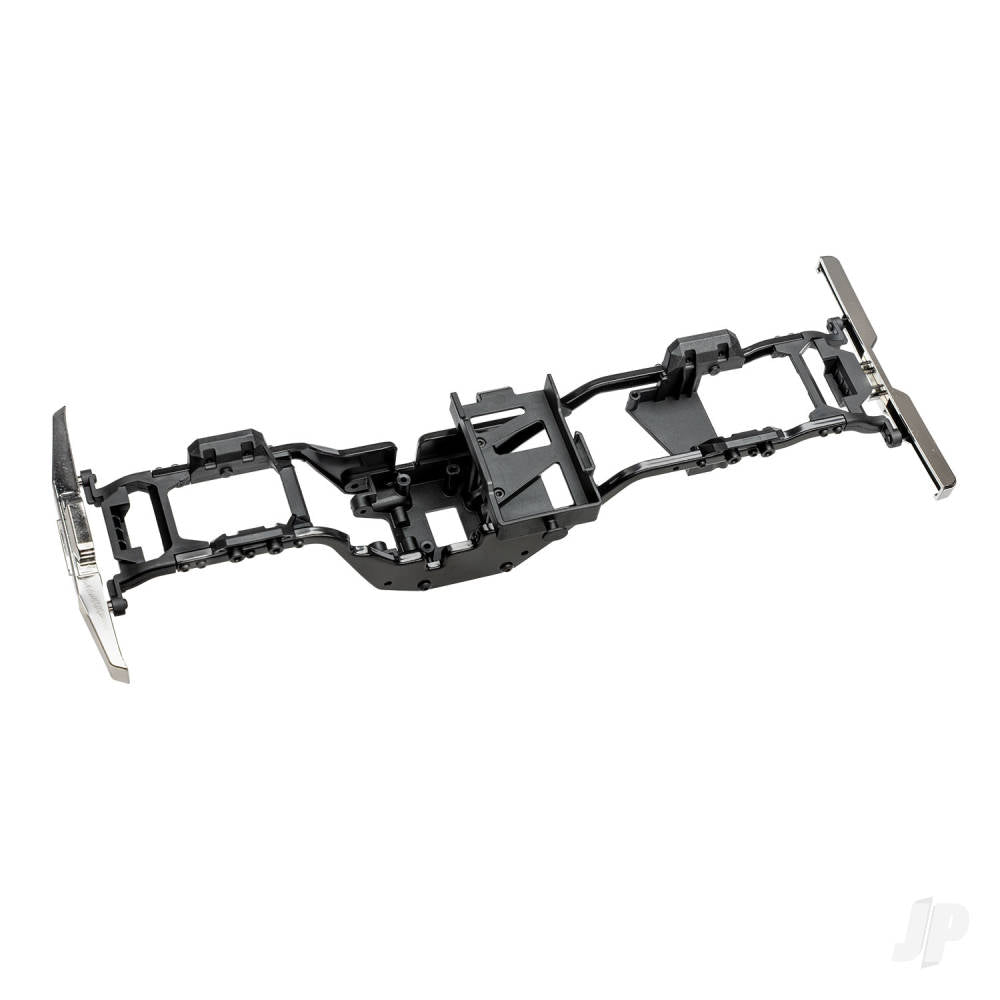

• Chassis Structure/Material: Steel ladder frame with Nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”

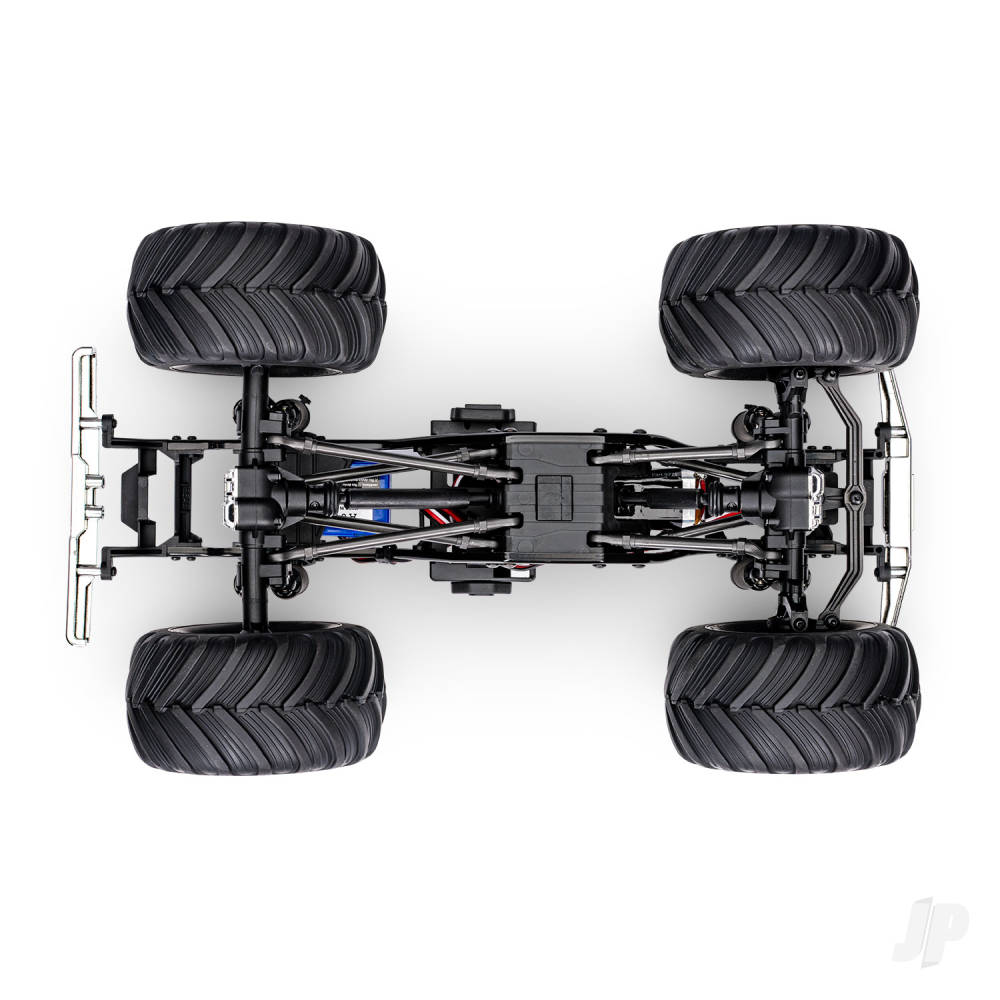

• Drive System: Shaft-driven 4WD
• Steering: Axle-mounted servo
• Radio System: TQ™ 2.4 GHz 2-channel transmitter
• Servo: 2065R metal-gear, heavy-duty waterproof
• Skill Level: 1
• Battery Tray: 51 mm L X 31 mm W

What’s In The Box:

• TRX-4MT Monster Truck
• Licensed ABS hard body
• Titan® 180 87-turn motor
• ECM-2.5 Electronic Control Module
• TQ transmitter
• 7.4 volt 750 mAh 2-cell LiPo battery
• 2-amp USB fast charger with iD®
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
