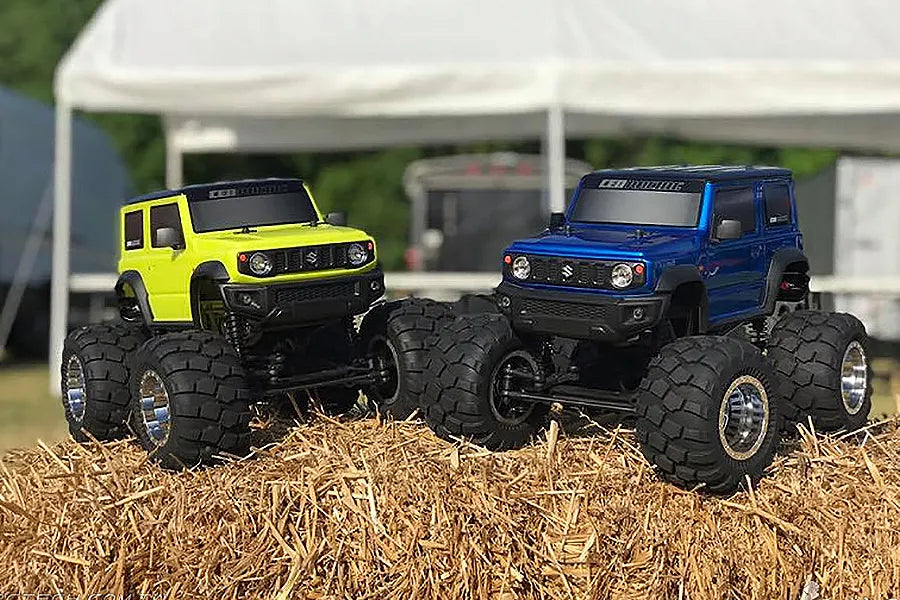

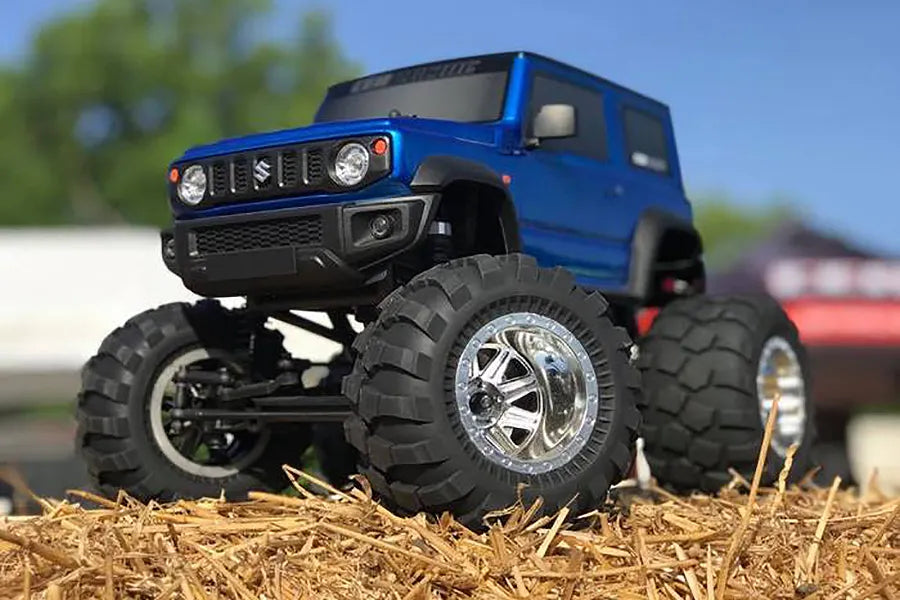

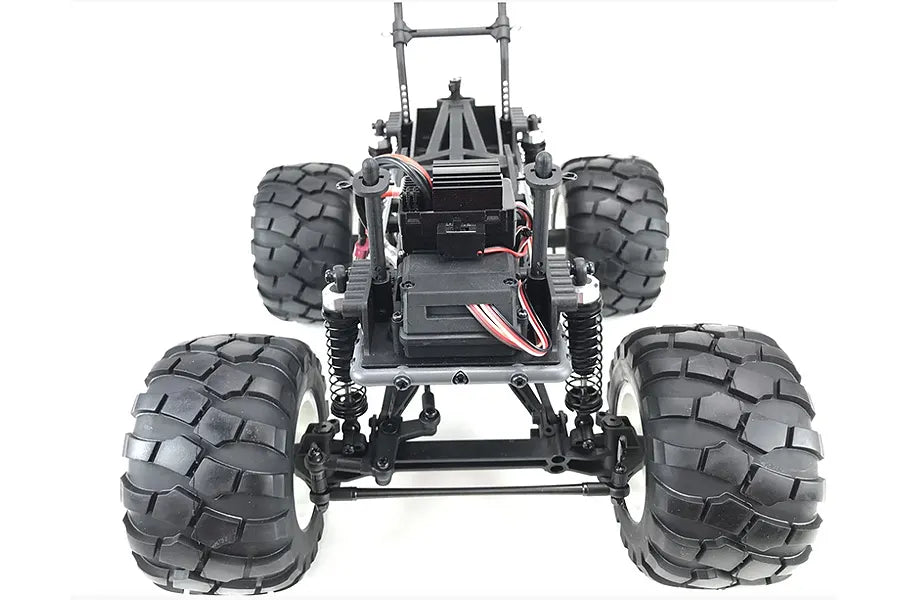

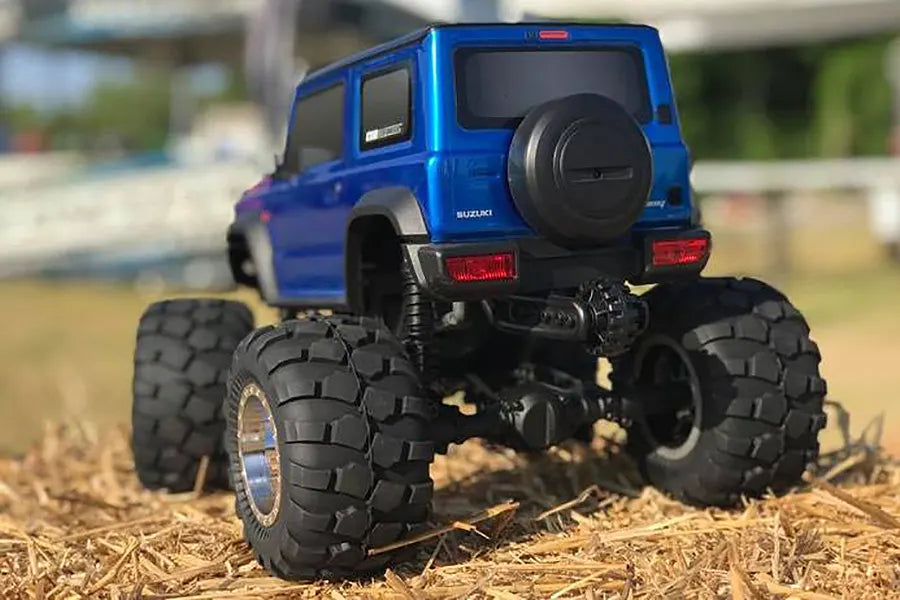

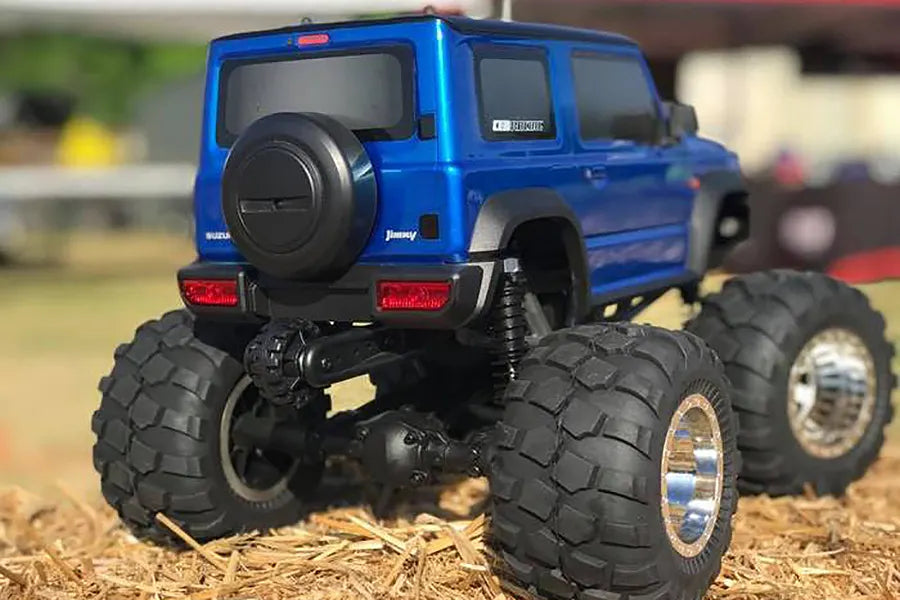

CEN RACING Q-SERIES SUZUKI JIMNY BLUE 1/12 SOLID AXLE RTR TRUCK RTR

FEATURES

ESC

• 40A WP-1040-Brushed (O.E.M by HobbyWing)
• Water-Proof and dust-proof for all weather
• Built-in capacitor module
• Automatic throttle range calibration
• Low voltage cut-off protection for Lipo and NiMH battery
• Over-heat protection and throttle signal loss protection
• Easily programmed with jumpers

Motor

• High RPM RS-540 Brushed Motor (O.E.M. by Mabuchi Motor)

Servo

• RTR-06 6Kg Servo O.E.M. by Savox
• 4.8V 0.16 sec/60 4.2 Kg-cm
• 6.0V 0.14 sec/60 6.5 Kg-cm

Radio System

MOD-3S

• 2.4 GHz 3 channel Pistol-Grip transmitter

SPECIFICATIONS

Dimensions

• Length: 11" (280mm)
• Width: 10.6" (270mm)
• Wheelbase: 8.2" (210mm)
• Ground Clearance: 2.6" (65mm)
• Gear Ratio: 1:26.44

Drivetrain

• Type: 2WD

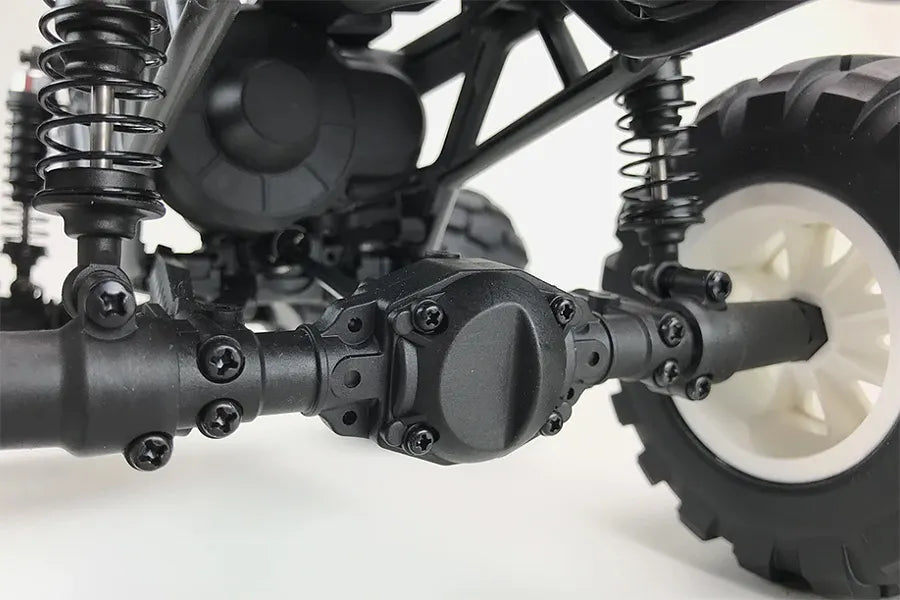

• Differentials: Center Locker, Rear Planetary Gear
• Easy changeable Hi/Low range gear box Design: 1:1.56 1:2.8
• Ball Bearings: Metal

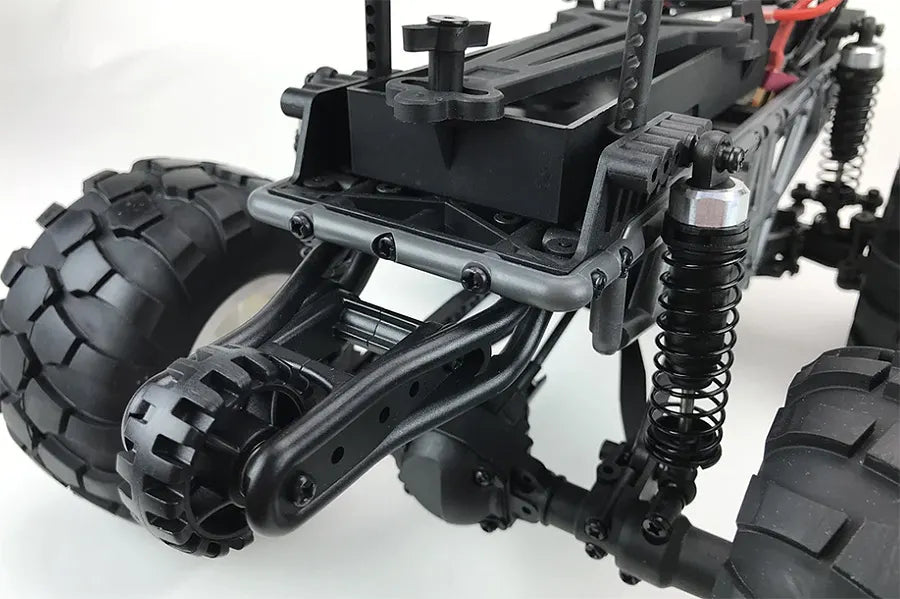

Suspension

• Big Bore Oil Filled Shocks
• 10mm over size shock body with 3mm hardened steel polished shaft
• Fixed wheelbase
• 4-Link Suspension design

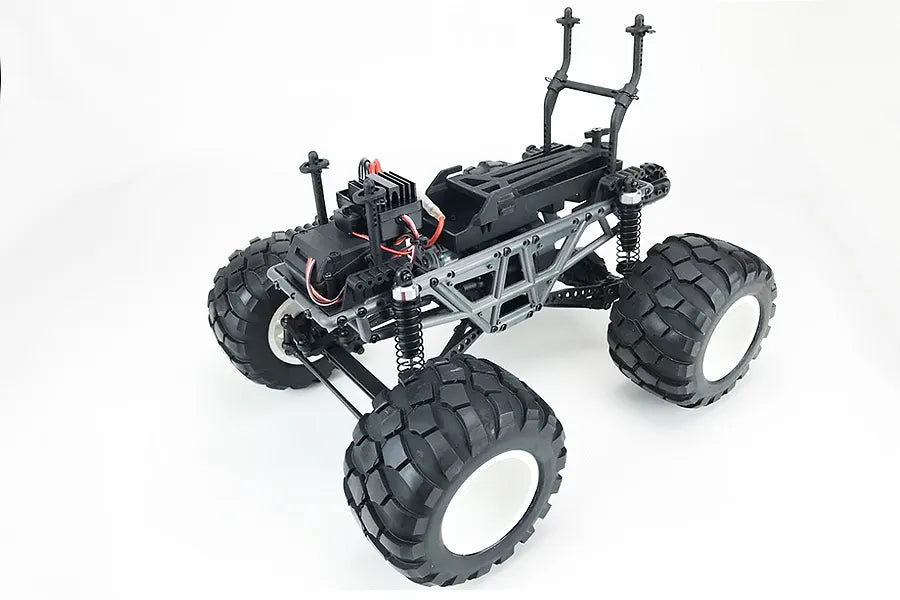

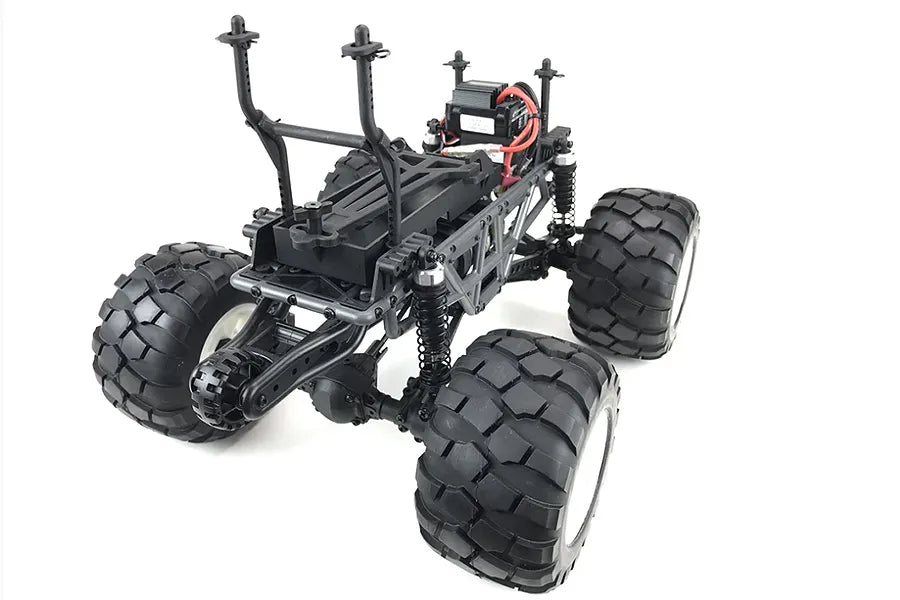

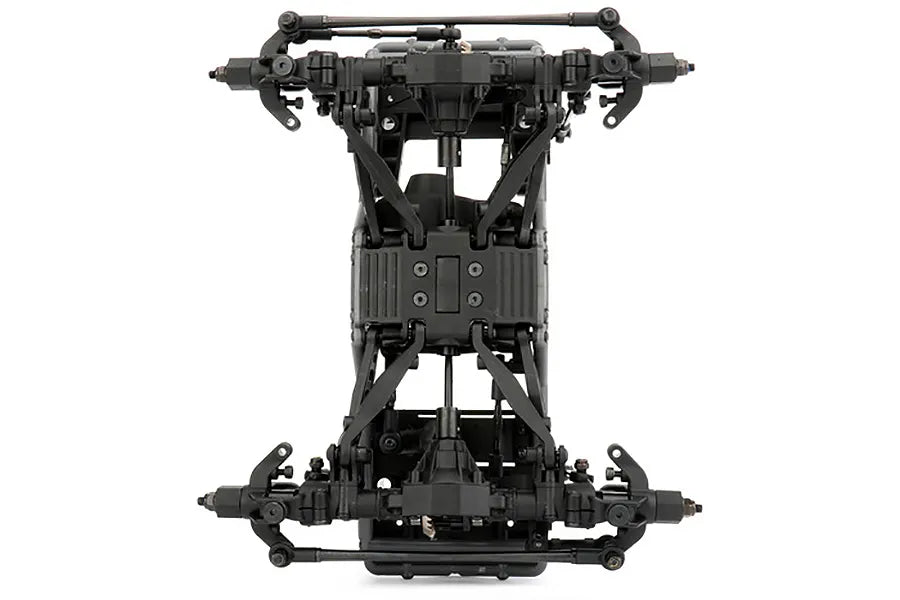

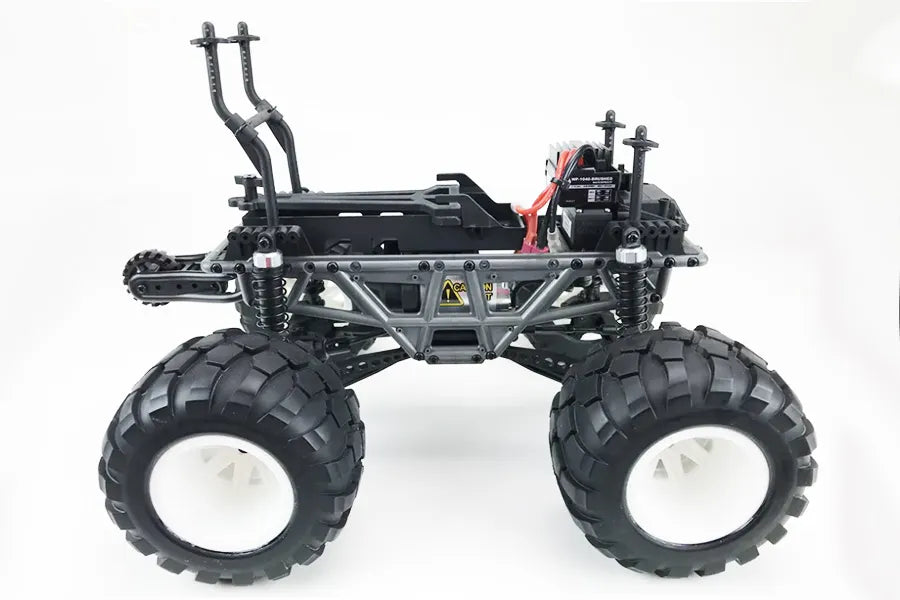

Chassis

• DVP (Dual Vertical Plate) Chassis Design
• Sealed Receiver Compartment
• Battery Tray: 146x50x25mm

Please note: This kit requires the following for completion: battery and charger.
