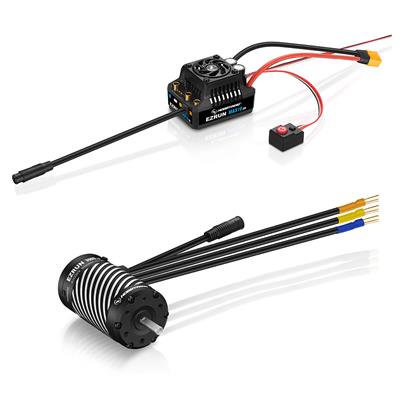

Hobbywing Combo 3652SD 3300KV G3 & Max 10 G2 80a

ntroducing the Hobbywing EZRUN MAX10 G2 - 80A Speed Control & 3662SD 3200KV G3 Motor Combo.

Compared with the previous generation, the Max10 G2 not only has strong explosive power and stable output power, but also has excellent low-speed linearity . It can not only easily realize violent start-up, straight-line high-speed, flying slopes, but also smooth low-speed walking

It supports turbo timing adjustment up to 32 degrees . It has a significant turbo timing effect when paired with EzRun 3652/3665 G3 , and the maximum speed can be increased by about 25% .

Patented frameless fan + smart start-stop technology
The side of the frameless fan has a large flow of air,blowing heat away from the integrated case radiator quickly.
Intelligent start-stop technology, intelligent start-stop fan,when the temperature is low, the fan is not activated, reducing noise and saving power; when the temperature rises to a certain level, the fan is activated to effectively dissipate heat.

Dynamic data acquisition
As convenient as ever.
After connecting the ESC to the OTA Bluetooth module , you can check the throttle, voltage, current, temperature, speed and other data in real time through the mobile APP to know the power running status; you can also grasp the power .

IP67 protection, 24/7 operation
The new induction line interface is waterproof design, the overall protection level is IP67 , and it can operate in various climatic conditions and harsh environments. Note: This ESC also supports sensored motors with common interfaces, and you need to purchase an adapter cable to realize it.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 140A/880A
Input Voltage - 2-4S LiPo
BEC Output - Switch Mode: 6V/7.4V,5A

Wires & Connectors
Input Wires - Red-12AWG-150mm*1 Black-12AWG-150mm*1
Output Connectors - XT60
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size - 30x30x10mm
Voltage Range - 5-7.4V
Powered by - BEC

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
Program Port - Independent programming port

Firmware
Firmware Upgrade - Supported

Size & Weight
Size - 53mm*39.5mm*37.2mm
Weight - 120g (including wire plug)

Applications
Motors
Sensorless brushless motor/ sensored brushless motor
Vehicles
1/10 th short truck/truck/monster
KV Rating/T Count
3S lithium battery: KV≤4000KV 3665 size motor
4S lithium battery: KV≤2600KV 4268 size motor
Built-in capacitor module

The built-in capacitor module eliminates the need for external capacitors and unwanted space.

RPM speed limit function

The ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in1 program box.

Zero timing competition design

The internal timing of the ESC is fixed at 0 degrees and cannot be adjusted. It is specifically built for zero timing races around the world.

Built-in BEC supporting high-voltage steering gear

The ESC has a built-in BEC which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

User-friendly and convenient for set-up

The ease of having a dedicated programming port eliminates the trouble of plugging and unplugging the cable to the receiver. In addition, the interface can power additional fans to further dissipate heat. The user-friendly interface allows for easy and convenient setup by simply connecting the 3in1 LCD programming box or OTA Bluetooth module to the dedicated programming port.

Protection functions

The various protection functions have greatly improved the reliability and durability of the ESC.

Single programming and RESET design button

The ESC is designed with a single built-in SET button. Calibrating or doing a factory-reset can be achieved by using this SET button. Simple and easy to use.

Support bi-directional motor movement

The ESC supports both CCW (counterclockwise) and CW (clockwise) motor rotational directions for different usage on the market.

Support ESC firmware upgrade

Hobbywing engineers are constantly innovating and pushing the limits of its products. Enjoy the latest functions by upgrading to the latest firmware. Simply connect the ESC using either the HW LINK App via the OTA Bluetooth module or the USB LINK software through the computer.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*2
Output Wires - Black-14AWG-200mm*3
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

ESC Programing via

SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10thTouring Cars & Buggies for Racing
KV Rating/T Count - ≥10.5T 3650 Motor

Motor
- The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Features
- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.
