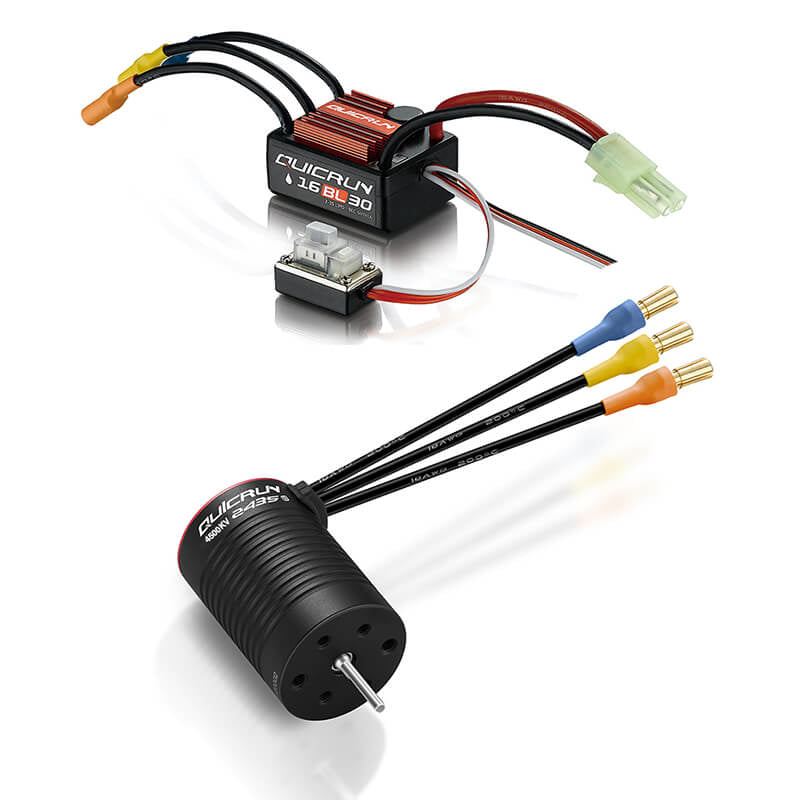

HOBBYWING QUICRUN COMBO 16BL30 ESC & 2435SL 4500KV G3 MOTOR

HOBBYWING QUICRUN COMBO 16BL30 ESC & 2435SL 4500KV G3 MOTOR

FEATURES

• Scale 1/16th, 1/18th
• Brushless
• Sensorless
• Waterproof
• 2s-3s Lipo / 6-9 Cell MiMh
• BEC Output: Linear Mode 6V/1A
• Tamiya Connector
• Programable

Motor KV: 4500KV
Lipo's: 2-3S
ESC Size: 36.0mm x 28.0mm x 18.0mm
ESC Weight: 38g
Diameter / Length: φ=24mm L=36mm
Shaft Diameter: φ=2.0mm
Bearing size (mm): Front: D8*D3*T4 Rear: D8*D3*T4
Pole: 4
Motor Weight: 61.2g
Applications: 1/16^th,1/18^th Touring Cars/Buggies/Trucks/Monster Trucks

Warning: Please carefully check power devices and manual of car frame to ensure the power pairing is reasonable. Avoid wrong pairing to overload and damage the motor. Always wire up all the parts of the equipment carefully. If any of the connections come loose as a result of vibration, your model RC may lose control. • Never apply full throttle if the pinion is not installed. Due to the extremely high RPMs without load, the motor may get damaged. Never allow the motor case to get 100 degrees Celsius (212 degrees Fahrenheit) because the magnets maybe demagnetized by high temperature.
