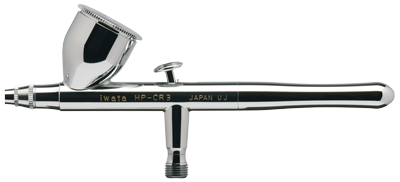

Iwata Revolution CR3 Airbrush with R3 Nozzle

Love how the Iwata Revolution BR sprays but crave a larger fluid cup? Then the new Revolution CR3 was built for you!

As another option within the Iwata Revolution Series, the new Iwata Revolution CR3 Gravity-Feed Dual-Action Airbrush delivers soft, quality atomisation using low air pressures for general purpose spraying on a medium scale. Now featuring our most popular size fluid cup with lid; a user favourite for colour mixing and easy clean-up (0.24 oz / 7 ml). Iwata's spring-steel needle resists breakage and the PTFE needle packings are solvent resistant for longevity.

This model adds another choice to Effortless Coverage, our spray category with the most abundant feature options. Because preferences are plentiful, we think choices should be as well.

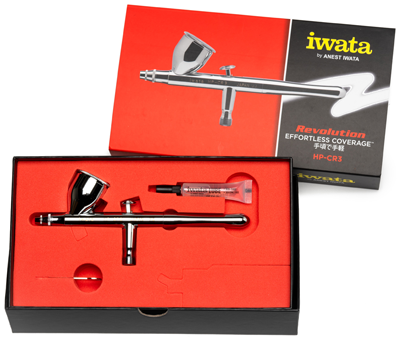

Included is the Iwata Nozzle Spanner that is used to remove the nozzle for cleaning, or you may purchase our Iwata Nozzle Wrench to easily remove or tighten your airbrush nozzle without fear of damaging it. Also supplied is Iwata Lube, which is used to lubricate the head needle and main lever mechanism.

Airbrush Specifications:

• Spray Performance Category: Effortless coverage and quality atomisation at low air pressures
• Series: Revolution

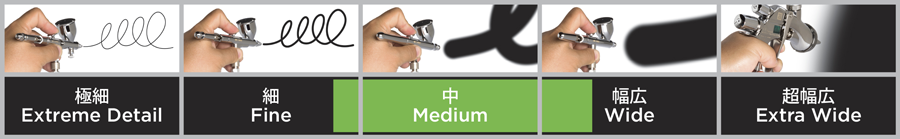

• Spray Scale: Fine to Wide - Fine line to 1 1/2" (0.3mm to 38mm)
• Optimal Working Pressure: 20 - 30 psi (0.14 - 0.21 Mpa)

  Will atomise at lower and higher pressures depending on your application, paint mix and compressor compatibility.

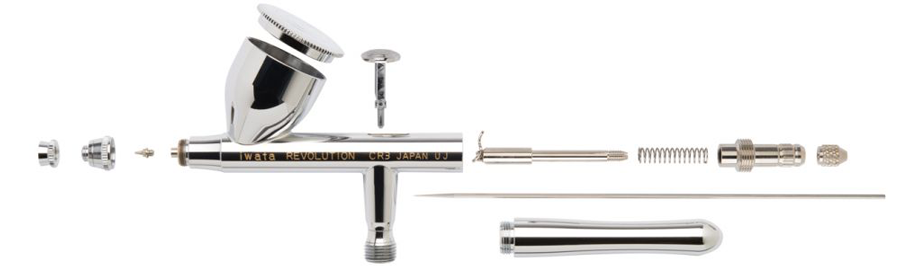

  • Head System: R3 - Needle, Needle Cap, Nozzle, Nozzle Cap (0.3mm)
  • Nozzle Type: Threaded
  • Feed Style: Gravity-feed
  • Paint Capacity: 0.24oz (7.0ml)
  • Action: Dual-action
  • Mix Type: Internal-mix
  • Handle Type: Comfort
  • Warranty: 10 Years Extended UK Warranty
  • Net Weight (lbs): 0.24
  • Net Weight (kg): 0.11
  • Assembled Dimensions (in): 1.10 x 5.87 x 2.64
  • Assembled Dimensions (mm): 28 x 149 x 67
  Excellent for these applications:
  • Cosmetics
  • Body Art
  • T-Shirt Painting
  • Model Painting
  • Custom Automotive
  • Hobby and Craft

  You will also need:

  • Air source - view our compatible compressors or visit our Compressor / Airbrush Compatibility Guide
  • Air hose - view our Iwata hoses
